خروجی گرفتن با فرمت BPMN
Original Bizagi title: Low-code Process Automation > Studio Cloud - Authoring environment > Bizagi Studio > Process wizard > Model Process > Generating Documentation > Exporting to BPMN
اتوماسیون فرایند Low-code / محیط طراحی Studio Cloud / Bizagi Studio / Wizard فرایند / مدلسازی فرایند / تولید مستندات / خروجی گرفتن با فرمت BPMN
Bizagi offers the possibility to share your diagrams with others modeling tools that use BPMN notation. You can export your diagrams to the BPMN 2.0 xml format.
To export your diagrams, follow the steps below:

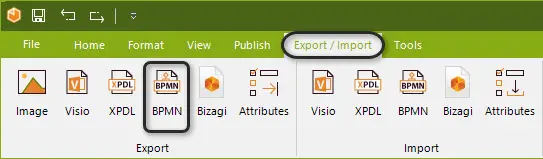

1. On the Export/Import tab, in the Export group, click BPMN.

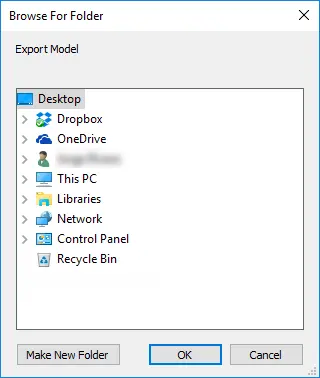

2. Specify the appropriate folder to save your BPMN file, this folder need Read and Write permissions.
Click the OK button.

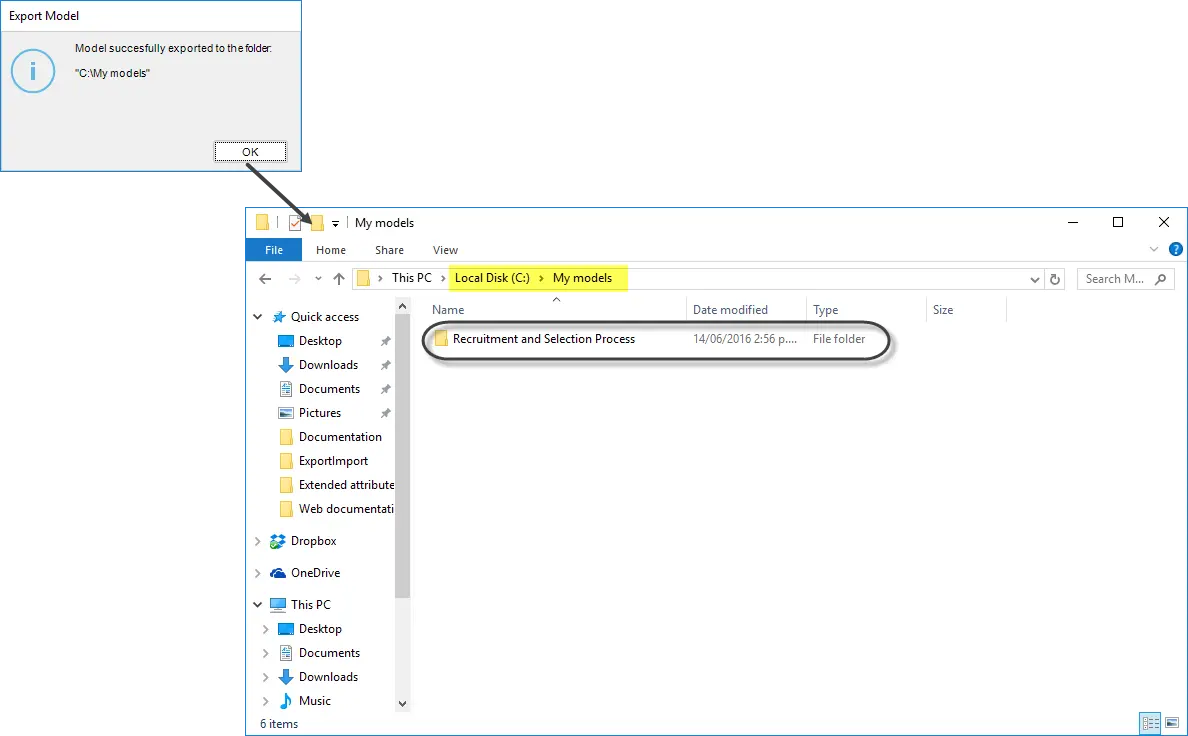

3. A message will confirm the export and a folder containing the diagrams will be created in the specified location.
4. After exporting to BPMN 2.0 xml, you will be able use the file in any program that supports this format.
You can also import a diagram in BPMN format into Bizagi Modeler. Click to learn more about importing a diagram from BPMN
